FT-102E粉末流動性測試儀

FT-102E economic powder flowability tester

一、概述Outline

由ROOKO瑞柯公司生產研發，粉體生產、制造、加工過程中，需要進行粉體物料的儲存、輸送等操作。粉體結拱是生產中的常見問題。直接影響到粉體的流動特性.

the product is developed by ROOKO company, powder production, manufacturing, processing, the need for powder material storage, transportation and other operations. Powder arch is a common problem in production.

粉體的流動性測量在粉體工程設計中應用，粉體的流動性對其生產、輸送、儲存、裝填以及工業中的粉末冶金、物料的混合、在水泥廠中粉體的重力流動、Directly affect the flow characteristics of the powder, and even affect the quality of the product. The flow measurement of powder is widely used in powder engineering design. It is of great significance to the flowability of powder production, transportation, storage, loading and powder metallurgy in industry.

本機采用固定的接料筒配置不同出口孔徑之漏斗來解決不同粉體因粉體本身物性而流動性差，無法流動現象。

The model adopts a fixed charging barrel to configure the funnel with different outlet holes to solve the problems that the fluidity of the powder is poor and the flow phenomenon can not be carried out because of the physical property of the powder.

常影響粉體流動性包括：粒子的形狀、大小、表面狀態、密度、空隙率等因素.

It often affects the fluidity of powders, such as particle shape, size, surface state, density, void fraction and so on.

二、功能描述：Function description

通過測試休止角（安息角）、質量流速、體積流速、表觀密度、松裝比、體積密度、堆積密度及松散密度等數據來評定粉末流動能力；采用多規格可更換出口孔徑之漏斗;根據測試粉體流動能力狀況來選擇配置出口漏斗孔徑數;出口控制檔板，秒表計時功能;配置標準不銹鋼量筒，固定圓盤法角度測試.本品為粉體流動性測試綜合性測量平臺.

Through testing slope of repose (angle of repose),  fixed  mass flow ,fixed volume flow rate, apparent density, loose specific weight, volume density, bulkdensity and loose density datas to assess powder flow ability;Using multiple specifications to replace the funnel of an outlet aperture;According to the flow capacity of the test powder to configure the number of outlet funnel aperture; Outlet control plate, stopwatch timing function; with  standard stainless steel measuring cylinder, the fixed disk method Angle test. This product is a comprehensive measuring platform for the fluidity test.

三、適用范圍scope of application

用于生產、質檢所、科研院所和大專院校實驗室對材料分析和測量使用。

quality inspection, scientific research institutes and colleges and universities laboratory for material analysis and measurement.
四、參照標準規范Standard specification

參照國標、歐洲和美標測試規范，適用于化工、石油、醫藥、制藥、涂料、電池材料、陶瓷、非金屬粉末材料、金屬氧化物粉末、分子材料、粉末冶金、塑膠、建筑材料、土壤、染料、磨料、食品添加劑、催化劑等相關行業.

European and American standards, and is widely used  in chemical , oil, medicine, pharmaceuticals, paints, batteries, ceramics, non-metallic powder material, metal oxide powder, molecular materials, powder metallurgy, plastics, construction materials, soil, dyes, abrasives, food additives, catalysts and other related powder particle industry.

五、參數資料 Parameters
1．漏斗：由圓柱形裝料筒配置多個可更換漏斗組成，為不銹鋼材料制成，

 Funnel: the cylindrical loading cylinder is provided with a plurality of replaceable funnel, the funnel is made of SS,

2. 可更換漏斗口徑mm：2.5；4.0；5.0；6.0；7.0；8.0；9.0；10；14；15；16；17；18；25（根據用戶需求選購規格,標配3個）

Replaceable funnel diameter mm: 2.5; 4.0; 5.0; 6.0; 7.0; 8.0;9.0; 10; 14; 15; 16; 17; 18; 25 (according to user needs optional, standard 3pcs)

3.時間范圍Time range：0-9999S.

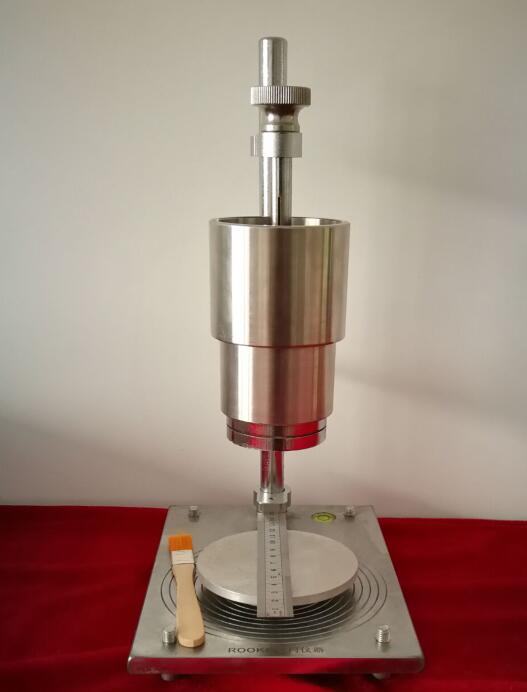

4.組成：由漏斗、支撐架、秒表、鋼尺、毛刷、接料筒、水平儀、工作平臺、不銹鋼量筒、亞克力圓盤、角度測量件.

Composition: funnel, support bracket, stopwatch, ruler, brush, feed barrel, a level working platform, stainless steel cylinder, acrylic disc, angle measuring device.

5.漏斗容積funnel volume： 200ml.

6.不銹鋼量筒容積有The SS cylinder volume has 25ml、100ml、200ml、250ml、500ml（根據用戶需求選購according to user needs optional）

7.流速測試：體積法和質量法獲得質量與時間，體積與時間關系.

The flow rate test: the relationship between mass and time, mass and time obtained by fixed volume method and fixed mass method.

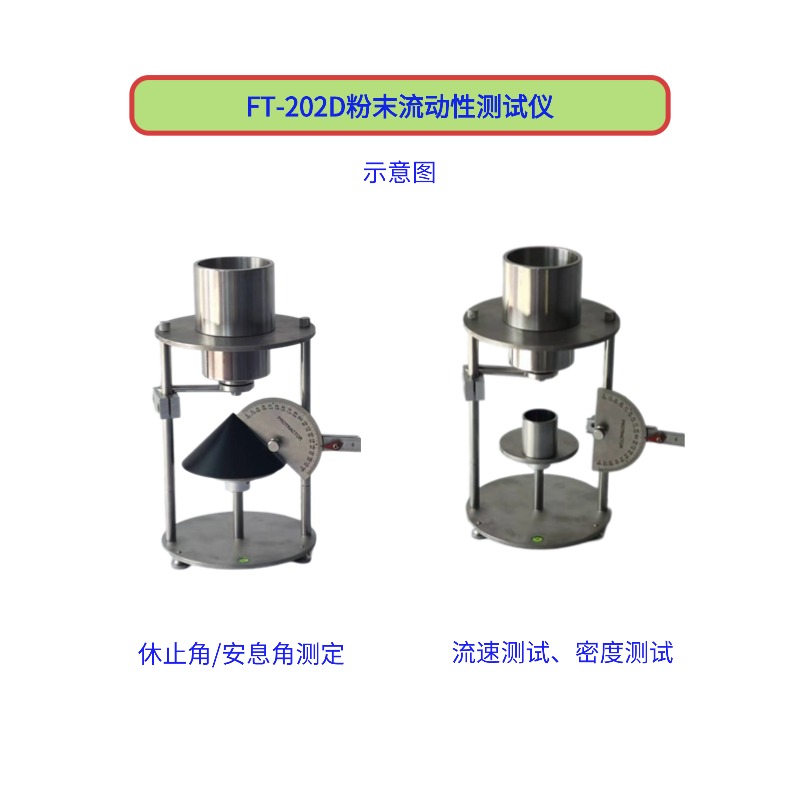

8.休止角（安息角）：采用定圓盤直徑法測量.圓盤直徑100mm.The angle of repose (repose angle): Measurement using fix  ， disk diameter, disc diameter 100mm.

9.密度測量：兩種方法：質量和體積法；已知質量粉體自然填充獲得體積；已知體積容器自然填充之粉體質量.Density measurement: two ways: fixed mass and fixed volume method, a certain amount of powder naturally filled to obtain volume, a certain volume container naturally filled to obtain powder mass.

FT-102E粉末流動性測試儀 視頻文件鏈接：

https://v.youku.com/v_show/id_XMTMxOTU4MzEyNA==.html?spm=a2hzp.8253869.0.0
